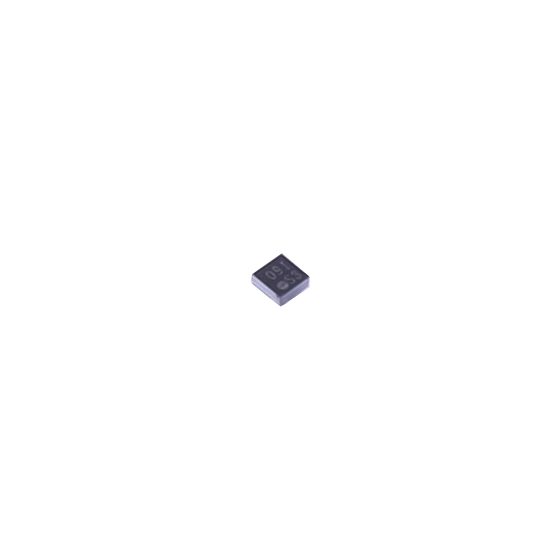

    TPS22914BYFPR/BYFPT IC Electronic Components A small, low RON, single-channel load switch with controlled slew rate

    Ask Lasest Price
    Brand Name : TI
    Model Number : TPS22914BYFPR/BYFPT
    Price : Consultant
    Payment Terms : T/T
    Supply Ability : 4100pcs/day
    Delivery Time : In Stock
    • Product Details
    • Company Profile

    TPS22914BYFPR/BYFPT IC Electronic Components A small, low RON, single-channel load switch with controlled slew rate

    TPS22914BYFPR/BYFPT IC Electronic Components A small, low RON, single-channel load switch with controlled slew rate
    Product description

    Part number TPS22914BYFPR/BYFPT is manufactured by TI Company and distributed by AYE. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.

    For more information on TPS22914BYFPR/BYFPT detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity to your message.


    Product details/Parameters


    Number of output interfaces1
    Output voltage0 V ~ 5.5V
    Output Current2 A
    Quiescent current7.70 µA
    Output Current (Max)2 A
    Output Current (Min)2 A
    Operating Temperature (Max)85 ℃
    Operating temperature (Min)-40 ℃
    Input voltage5.5 V
    Number of pins4
    PackageXFBGA-4

    Part of the recommended inventory list
    TPS2115APWRTITSSOP-8
    TPS2115ADRBRTISON-8
    TPS2115APWTITSSOP-8
    TPS2115AIPWRQ1TITSSOP-8
    TPS2115ADRBTTIVSON EP-8
    TPS2115ADRBTG4TIVSON EP-8
    TPS2115APWRG4TITSSOP-8
    TPS2115ADRBRG4TISON-8
    TPS2115APWG4TITSSOP-8
    TPS2115APWR G4TITSSOP-8

    The TPS22914/15 is a small, low RON, single-channel load switch with a controlled slew rate.The device includes an N-channel metal-oxide-semiconductor field-effect transistor (MOSFET) that operates over an input voltage range of 1.05 V to 5.5 V and supports a maximum continuous current of 2A.The switch is controlled by one switch input and is capable of connecting a low voltage control signal directly.The small size and low RON make this device ideal for space-constrained, battery-powered applications.The wide input voltage range of this switch makes it a versatile solution for many different voltage rails.The controlled rise time of the device greatly reduces the inrush current caused by large load capacitances, thereby reducing or eliminating power consumption.The TPS22915 further reduces the overall solution size by integrating a 143 Ω pull-down resistor for fast output discharge (QOD) when the switch is turned off.



    advantages


    1. Parts source determine price, The source of our parts is very initial.

    2. Price can be negotiable based on quantity; delivery terms;

    3. We will try to help customers to reduce freight charge.

    4. The price of products changes frequently, if you need to quote price, please inform the model which you need,we will give you the reasonable price as the standard quoted price in the same day


    FAQ

    Q1: What company do we belong to?
    A1: We are a trader and agent.
    Q2: How long is our delivery time?
    A2: This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.
    Q3: How to order?
    A3: Please mail your order or request to us, and tell us the following information: shipping details, including company name, address, person, phone number, quantity.
    Q4: How many discounts are available for ordering products?
    A4: As long as you provide us with your demand, we will give you the best price.
